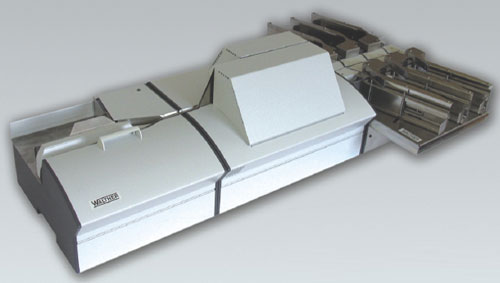

HLS 4 High Level Scanner

Conception

The NEW generation of WALTHER High Level Scanners is available now.
The HLS 4 is the most powerful desk top scanner on the market and has implemented a very ad-vanced camera technology to achieve highest image quality and performance
A Front Camera for on line OCR and barcode recognition at any area on the document, including sorting in the same pass.
Or a special front camera for ultraviolet and infrared images
Two additional cameras ( front and rear ) for archiving in color or grayscale.

Technology

The HLS 4 is a well balanced high speed processing system.
The Feeder has a capacity of 500 or 1000 documents and an excep-tion item slot and an optical or ultrasonic double feed detection.
The Central Unit with its straight on transport track reduces the risk of paper jams. High performance cameras guarantee superior im-age quality in combination with perfect MICR reading. OCR and barcode decoding out of the image.
An ink jet printer for the front or rear side of the documents
Each Sorter Module has 6 motor-ized output pockets and they are scaleable up to 60 pockets

Applications

• Check and payment form processing
• ICR and image archiving
• Check fraud detection
• Processing of food tickets, vouchers and lottery slips
• Signature and seal verification
• Processing of medical prescriptions and all kind of small size documents

Characteristics

• Compact table-top modules
• Modular, robust and reliable
• WALTHER offers a complete device driver (API) including the whole image handling for easy application development.

Technical Data

• Automatic batch and exception item feeder with optical or ultra sonic double feed detection
• Input hopper capacity: up to 500 or 1000 items, continuous load
• Item length 80-230 mm
• Item height 55-110 mm
• Paperweight: 70 - 120 g/m²
• Measures: 32 x 38 x 19 cm
• Weight: 9 kg approx.

Central Unit

Reader options:

• Optical Character Recognition OCR-A, OCR-B, E13B, Barcode at any position on the document with special up stream image camera
• Magnetic Ink Character Recognition CMC-7 or E13B (MICR)
• Performance in reading, scan-ning and sorting: for 6” docs.
  Transport speed 1 m/s: 250dpm
  Transport speed 1.4 m/s: 350dpm

Image Features

• Two front and one rear camer-as with 100, 200 or 400 dpi
• 24 bit color images with RGB LED light array in JPEG or
• Grayscale images with 256 levels of gray in JPEG or
• Black/White images in TIFF Fax Group IV or BMP and/or
• Ultraviolet and infrared images in 100 or 200dpi

Endorsement: Noiseless ink jet printer front or rear with high ca-pacity ink cartridge

Interfaces:

• 1 – 3 USB 2.0 high speed for image data
• Serial RS 232 for communica-tion, read results and host sorting

Measures: 46 x 38 x 27 cm
Weight: 18 kg approx.

Item Sorter

• Module with 6 motorized output stackers for adjustable item length
• Upgradeable to 10 modules (=60 stackers) at constant speed
• Output stacker capacity up to 300 items, depending on paper
• Measures: 32 x 62 x 19 cm
• Weight: 15 kg approx.

Paper Track Extension

• 100 mm, between central unit and sorter module for time criti-cal sorting applications.

Power supply

• Power supply integrated in the feeder module for central unit and one sorter module
• One additional external power supply for each 2 more sorter modules
• Measures: 15 x 7 x 3 cm
• Weight: approx. 1 kg
• 230/115 V 50/60 Hz +/- 10%
• Temperature.: + 10°- + 35°C
• Relative humidity: max. 90 % non-condensing
